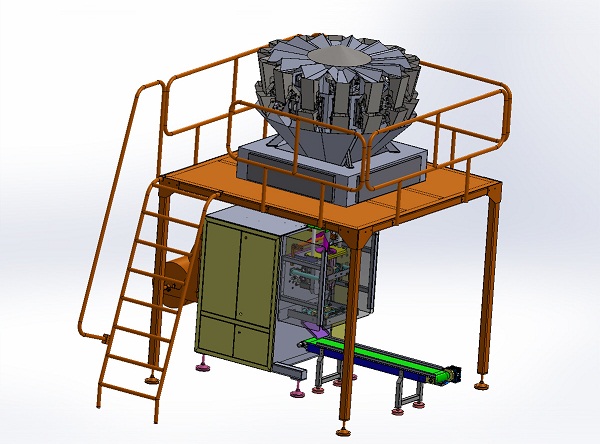

16 Head Linear Weigher
Technical Specification :-
| 10 Head Weigher | Multifill/ Hydrin |
| Food Contact Parts | SS-304 |
| Speed | Upto 120 PPM depending on Pouch Length |
| Sealing type | Center seal |
| pneumatic Components | janatics |
| Unwinding | Motorized |
| Pulling Motor | 1.0 Kw Servo |
| Sensor | DA |
| PLC | Yes |
| HMI 7 inch | Yes |
| Paper Break Sensor | Yes |
| Material Empty Sensor | Yes |
| SMPS | Schneider / Omron |
| SSR | Adlor/Unison |
| Cladding | SS-304 |
| Electric Supply Requirement | Three Phase 440 V AC |
| Compressor Air Required | 6 CFM |
| Dimension Basic Machine | Front 3100mm, Length 3000mm, Height 3000mm |
| Dimension With Z Conveyor | Front 3100mm, Length 5000mm, Height 4000mm |
| Machine Weight | 1500 Kg |
| Material | Granules , Non Dusted and Non Sticky Powder |
| Weight Variation | 1-2 Gram |
| Wastage | 1-2 Gram |
| Delivery | 25-30 Days against P.O. |
| Warranty | One year Against Mechanical Manufacturing defects only. No Electric parts fall Under Warranty. |
