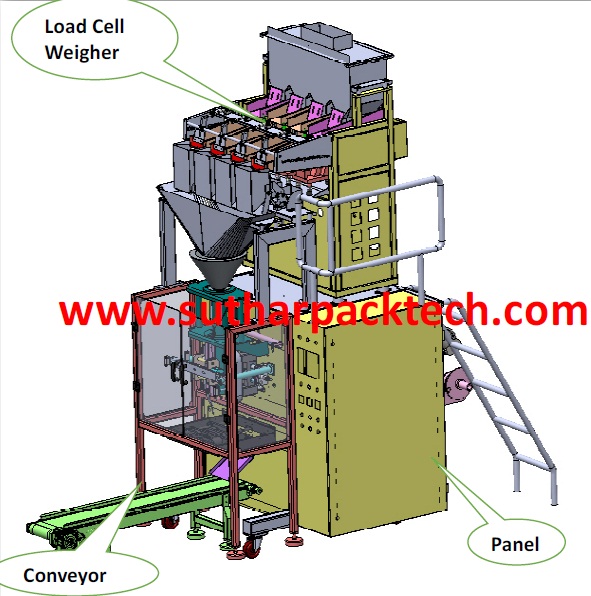

Collar Type 4 Head linear Weigher
Technical Specification :-
| 4 Head Weigher | SPT |
| Food Contact Parts | SS-304 |
| Speed | Upto 35 PPM depending on Pouch Length |
| Sealing type | Center seal |
| pneumatic Components | janatics |
| Unwinding | Brake with cylinder |
| Pulling Motor | 1.0 HP Rotomotive |
| Horizontal | pPneumatic |
| Sensor | P&F |
| PLC | Yes |
| HMI 7 inch | Yes |
| Paper Break Sensor | Yes |
| Material Empty Sensor | Yes |
| SMPS | Schneider / Omron |
| SSR | Adlor/Unison |
| Cladding | SS-304 |
| Transformer | Two Phase to single phase (350 VA) |
| Electric Supply Requirement | Three Phase 440 V AC |
| Compressor Air Required | 6 CFM (3 Hp for one Machine & 5 HP for Two Machine) |
| Dimension | Front 1250mm, Length 3000mm, Height 2800mm |
| Machine Weight | 800 Kg |
| Material | Free Flow Material only |
| Weight Variation | 2% |
| Wastage | 1-2% |
| Delivery | 25-30 Days against P.O. |
| Warranty | One year Against Mechanical Manufacturing defects only. No Electric parts fall Under Warranty. |
