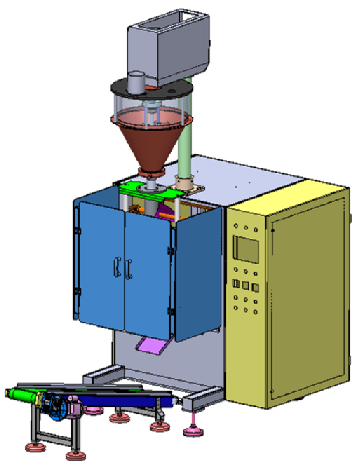

Collar type Machine in Auger upto 1000 g
Technical Specification :-
| Food Contact Parts | SS-304 |
| Speed | Upto 60 ppm depending on Pouch Length |
| Sealing type | Center seal |
| pneumatic Components | janatics |
| Unwinding | Brake with Cylinder |
| Pulling Motor | 1.0 HP Rotomotive |
| Filling Motor | 1.0 Kw servo base |
| Sensor | P&F |
| PLC | Yes |
| HMI 7 inch | Yes |
| SMPS | Schnieder / Omron/ Inovance |
| SSR | Adlor/Unison |
| Paper Break Sensor | Yes |
| Material Empty Sensor | Yes |
| Cladding | SS-304 |
| Hopper Capacity | Upto 10 Kg |
| Power Consumption | 4 KW with Temperature Controller |
| Electric Supply Requirement | Three Phase 220 V AC |
| Compressor Air Required | 6 CFM (3 Hp for one Machine & 5 HP for Two Machine) |
| Dimension | Front 1200mm, Length 1740mm, Height 2600mm |
| Machine Weight | 600 Kg |
| Material | Free /Non Free Flow Material |
| Weight Variation | 1-2% |
| Wastage | 1-2% |
| Delivery | 25-30 Days against P.O. |
| Warranty | One year Against Mechanical Manufacturing defects only. No Electric parts fall Under Warranty. |
